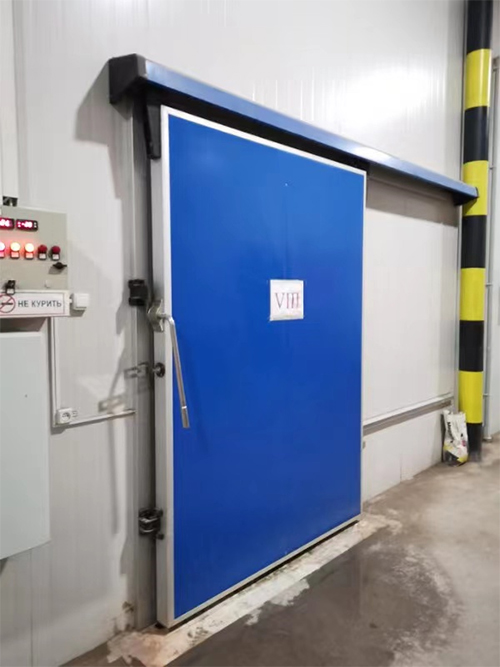

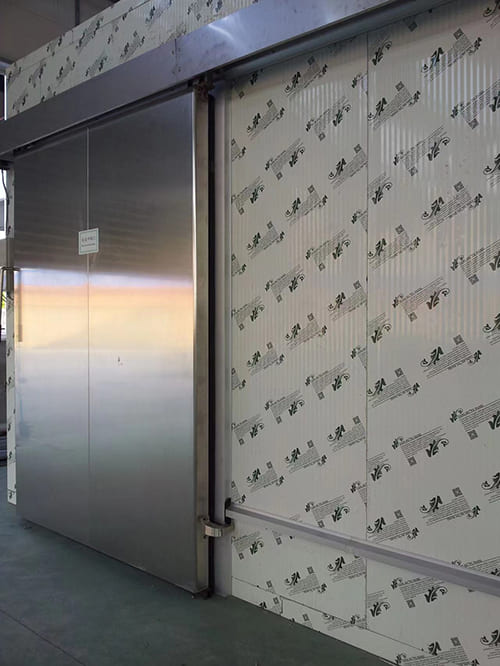

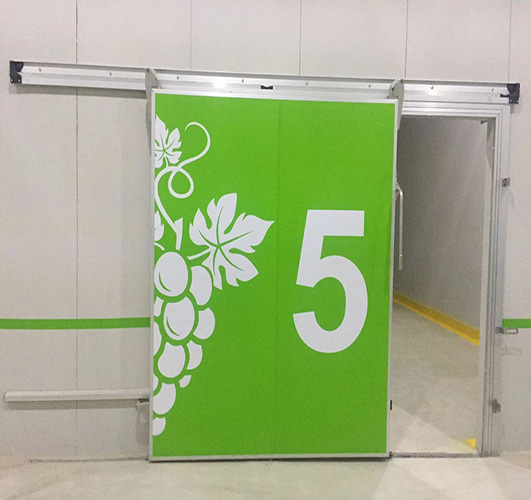

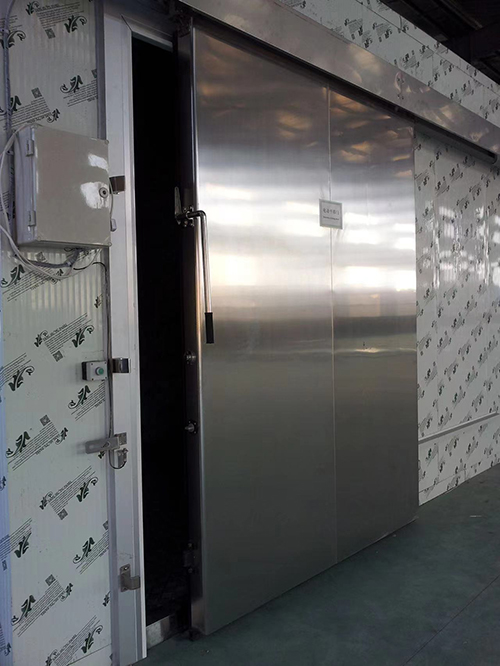

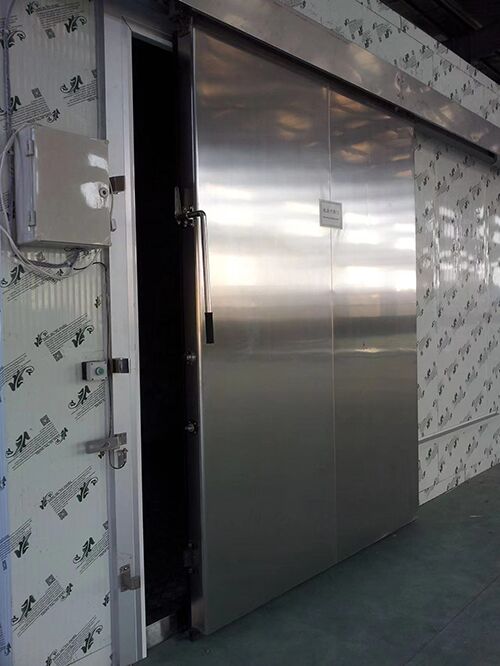

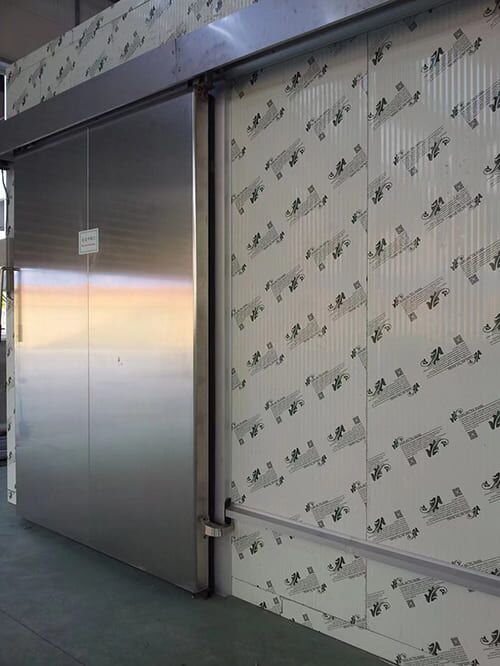

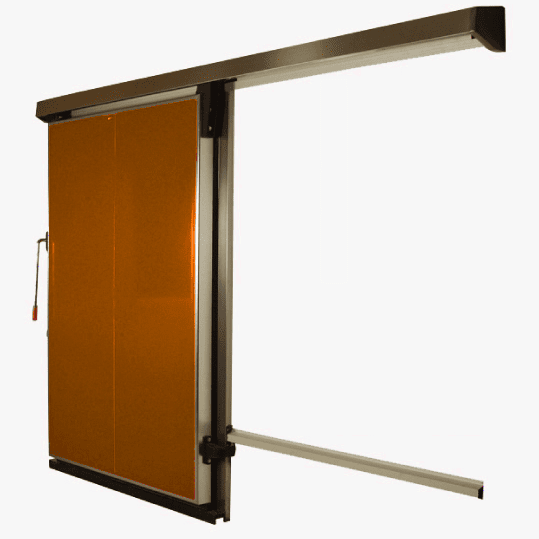

Cold room sliding door
The cold room sliding door is composed of the door frame, door panel, door rail, and accessories. It could be opened at 180 degrees.
Features:
Sliding doors have a simple structure, beautiful appearance, good sealing, and heat insulation; meanwhile, the escape devices ensure safe once the person is in the cold room;
Application:

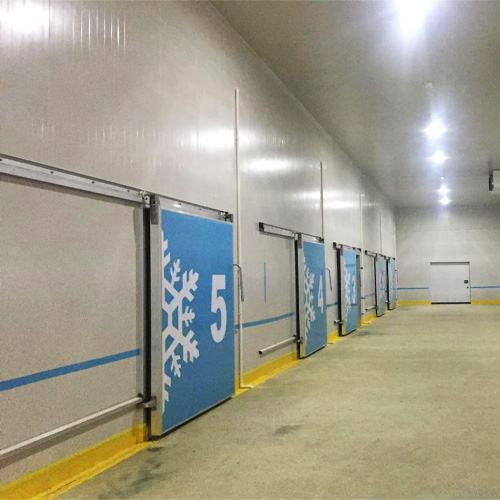

cold room sliding door has applied those cases like cold storage, processing workshop, walk-in cooler, walk-in chiller, etc. The users need to frequent open.
Additional information
| Applicable temperature | -45°C~+50°C |
|---|---|
| Door panel core material | Polyurethane |
| Door core material density | 42kg/m |
| Door Panel Thickness (mm): | 75, 100, 150，200 |
| Metal facing optional | stainless steel, color steel plate, embossed aluminum plate. |
| Door type optional | Manual sliding door and automatic sliding door |
| Door oepning height | 1000 – 5000mm |
| Door opening width | 1000 – 2500mm |
Details about Cold room sliding door
(1) Door seal:
Made of EPDM, it has good chemical resistance, excellent durability, and wide temperature adaptability from -50°C to +130°C.
(2) Door panel
The door panel is prefab with an aluminum plate covered on four sides. The core material polyurethane is integrally foamed, the appearance looks flat, and meanwhile, the door system ensures good insulation and Sealing property.
(3) Door frame.
It has high strength and good sealing property. And equipped with a self-limiting temperature electric heating wire, no need to control the temperature and switch the power supply manually.

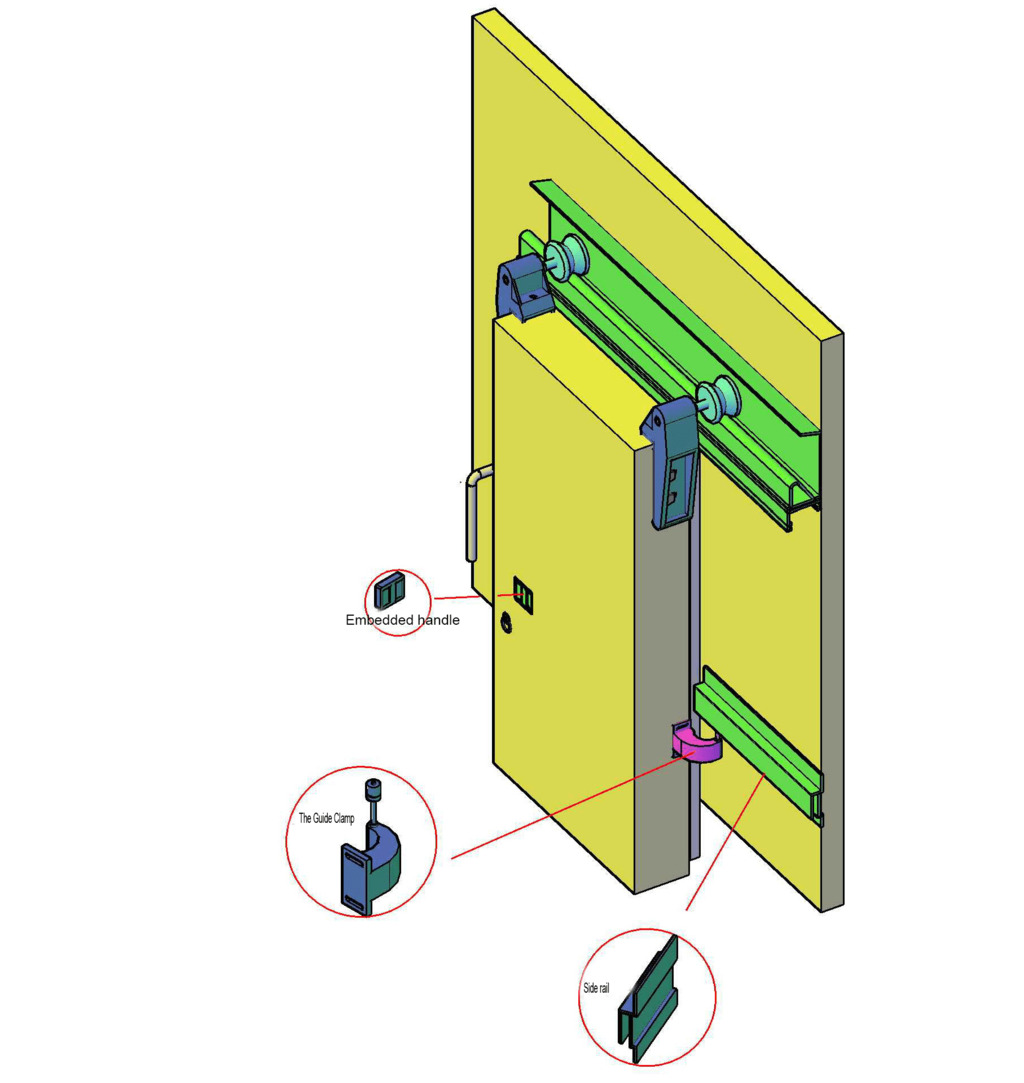

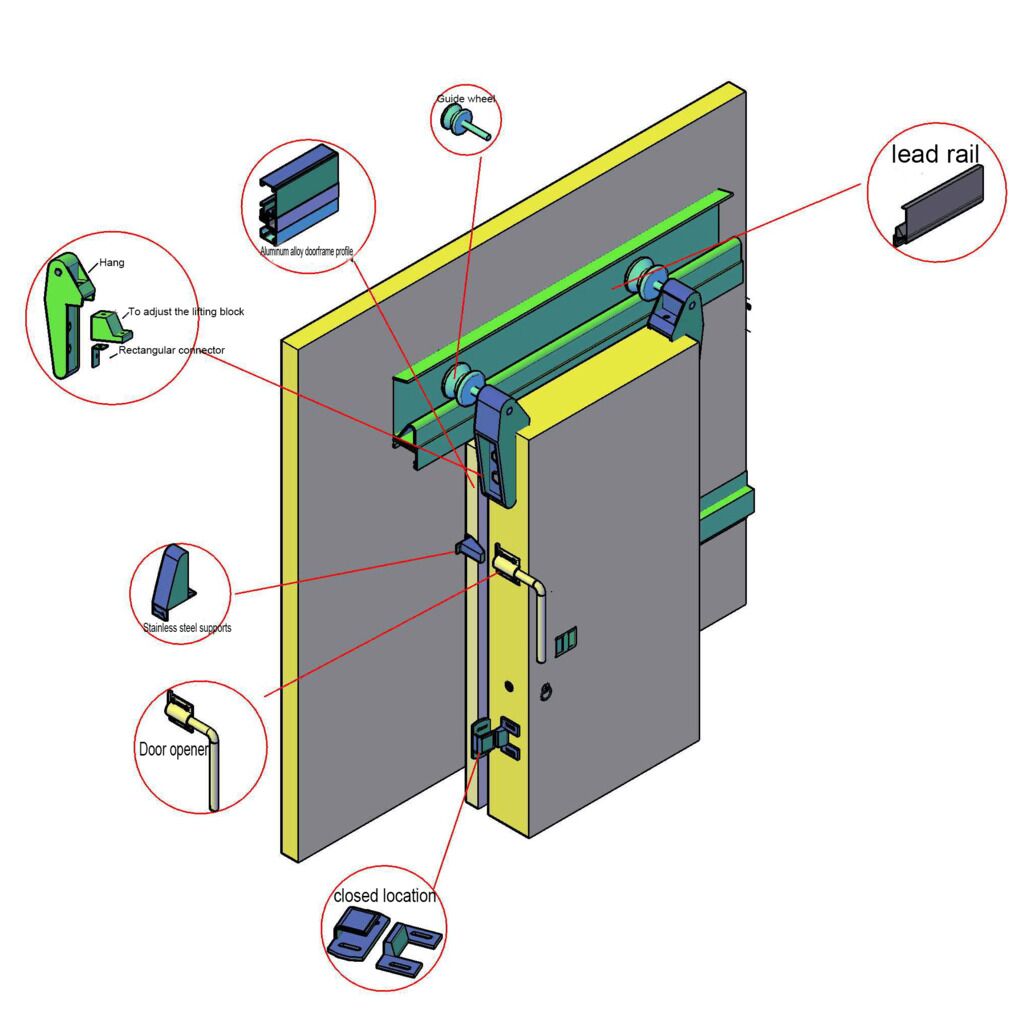

(4) Guide rail device
The door rail is composed of a top rail and a side rail. The rail is made of shaped aluminum alloy, Combining an adjustable guide wheel device and hanging system to make the door good sealing property.
For example, -5~+5°C, -20°C,-35°C etc.
Different application case has different ideal material. PPGI,SUS304,SUS317 or PVDF
0.4mm, 0.476mm, 0.5mm or 0.6mm
Specific dimension, Inch or mm. L X W X H,If provide PDF or CAD, that would be better.
2PH or 3 PH, 220v~380V， 50HZ or 60 HZ
Freon system or Ammonia; If it is Freon, R22,R404 or R507
Specific storage product like fruit ,vegetable, meat or medicine.Detailed storage weight calculated as kg or ton.
