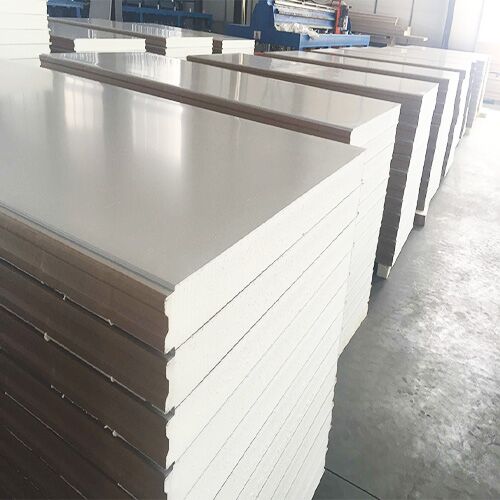

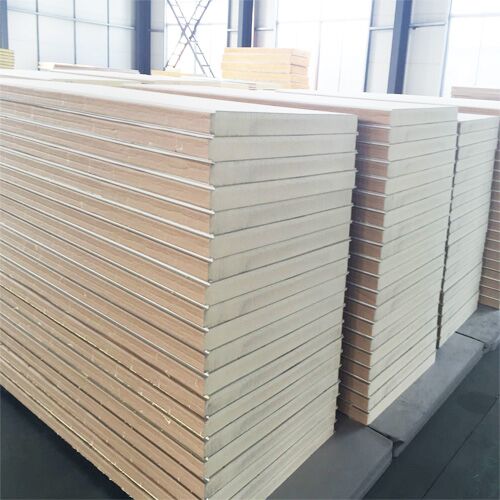

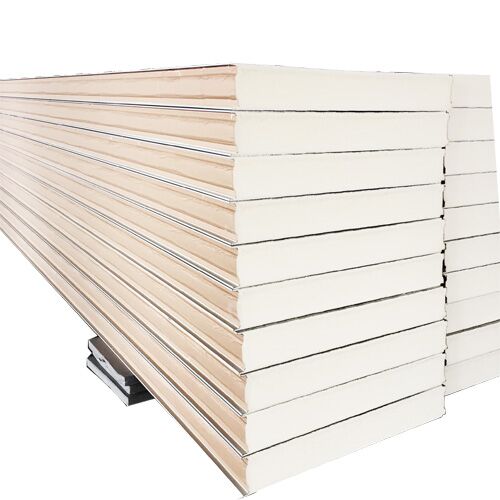

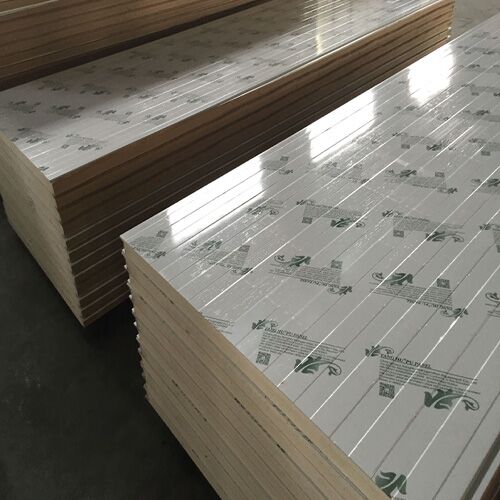

Slip Joint Type Cold Room Panel

Category Tags ,

Slip Joint type cold room panel is mainly used for large size cold storage warehouse especially for logistics warehouse, blast freezer of sea products, ice cream etc. Better insulation property. DIY as your demand size or expand freely when you need it.

Additional information

Panel Facing

Paper, ppgi, SUS304


1125mm, 925mm




100mm, 120mm, 150mm, 200mm, 40mm, 50mm, 75mm

Core material


Details about Slip Joint Type Cold Room Panel

Slip Joint Type  Cold Room Panel’s Advantage

Slip Joint type cold room panel is composed of two layers of steel facing and PPIR core material. Because two pieces of panels are fixed by a self-tapping screw, we call it a slip joint type panel. Slip Joint type panel has below advantages:

    • Assemble way is free. (Connected by tongue and groove, fixed by a rivet or self-tapping screw)
    • Easy to expand size once you need to enlarge the length.
    • Best insulation property and better fire retardancy. That could meet the B1 fire retardant class. Better insulation property could save power consumption.
    • Appearance is beautiful and neat. (Because it is produced by automatic production line and the foaming way is vertical foaming. The material is even that ensures PIR  panel without bulbs and holes).
    • Fast delivery, the slip joint type PIR panel could be ready within 7 days after receiving the deposit.

Slip Joint Type Cold Room Panel’s Disadvantage

Because slip joint type cold room panel is produced by automatic production line. so it needs to meet with minimum order quantity.

Slip joint type panel needs some accessories including u channel, L clamp, L splash, suspension system, etc. The installation accessories cost is relatively higher than the cam-lock type panel.

Slip Joint type Cold Room Panel’s Application

Slip joint type cold room panel is mainly used for middle size or large size cold rooms and cold storage warehouses. It is widely used in the food industry, medical industry, logistics warehouse, and other related industries.

In the food industry, slip joint type cold room panel is usually used in food process factories, slaughterhouse, fruit, and vegetable warehouse, supermarket, hotel, restaurant, etc.

In the medical industry, the cold room is usually used in hospitals, pharmaceutical factories, blood centers, gene centers, etc.

Other related industries, such as chemical factories, laboratories, and logistics centers, also need slip joint-type cold room panels for insulation.

Slip Joint Type  Cold Room Panel’s Temperature And Thickness Match

Different applicable temperatures with different thicknesses of PU panel

PU Thickness Applicable temperature
40/50mm  +5°C or above
75mm  -5°C or above
100mm  -20°C or above
120mm -25°C or above
150mm -35°C or above
200mm -45°C or above

For example, -5~+5°C, -20°C,-35°C etc.

Different application case has different ideal material. PPGI,SUS304,SUS317 or PVDF

0.4mm, 0.476mm, 0.5mm or 0.6mm

Specific dimension, Inch or mm. L X W X H,If provide PDF or CAD, that would be better.

2PH or 3 PH, 220v~380V, 50HZ or 60 HZ

Freon system or Ammonia; If it is Freon, R22,R404 or R507

Specific storage product like fruit ,vegetable, meat or medicine.Detailed storage weight calculated as kg or ton.
